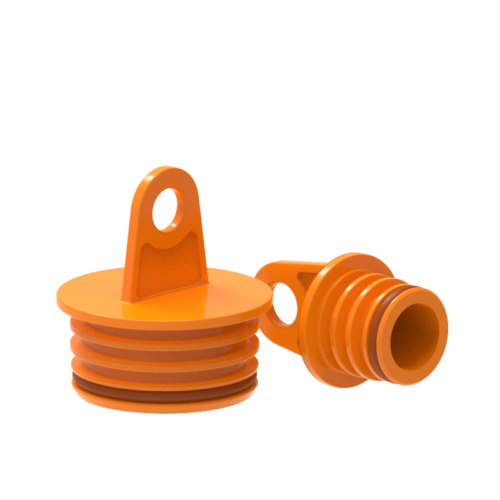

Plugs for Sliding Latch Quick Couplings - Technical Data
Description
Series: Small, Medium, Large

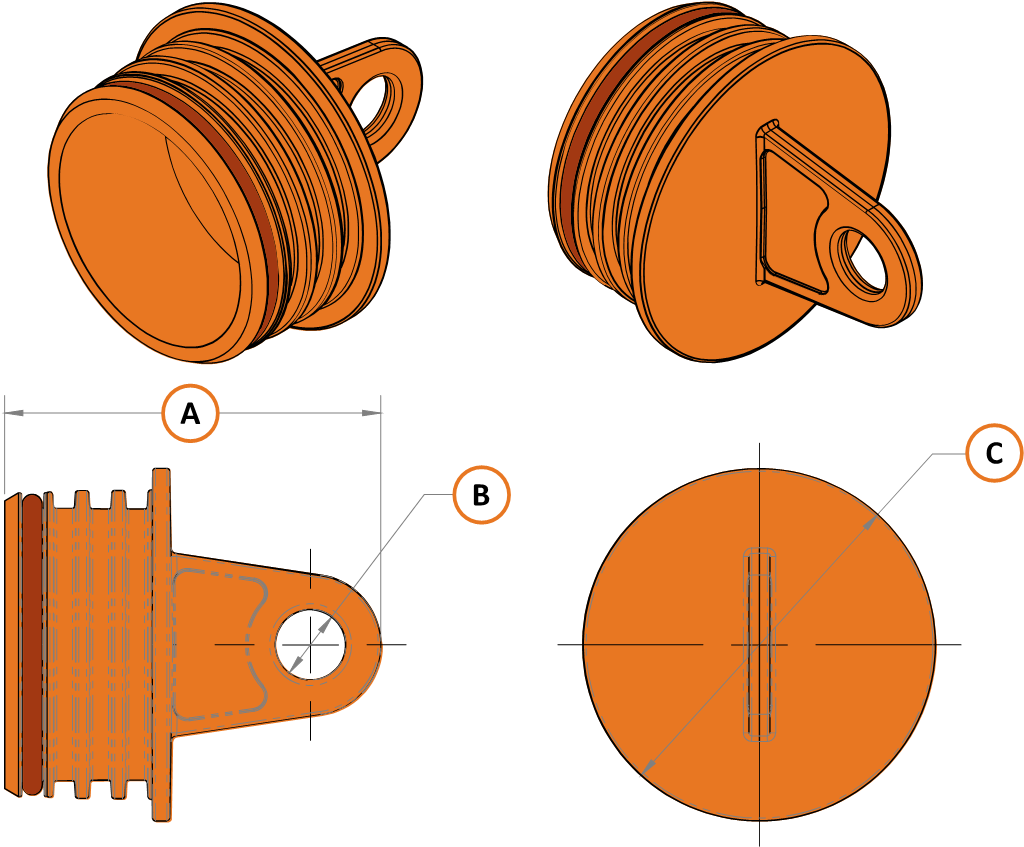

Dimensions (mm)
Dimensions (mm) and weight (g)
Series
|
A
|
B
|
C
|
Weight (g)
|
|---|---|---|---|---|
Small (1)
|
33.27
|
6.35
|
20.07
|
1.4
|
Small (2)
|
33.27
|
6.35
|
20.07
|
1.4
|
Medium (1)
|
33.02
|
6.35
|
20.07
|
1.7
|
Medium (2)
|
33.02
|
6.35
|
20.07
|
1.7
|
Medium (3)
|
33.02
|
6.35
|
20.07
|
1.7
|
Large (1)
|
635
|
6.35
|
31.75
|
2.9
|
Large (2)
|
635
|
6.35
|
31.75
|
2.9
|
Large (3)
|
685.8
|
6.35
|
31.75
|
2.9
|
