RP-S Series - Ring Pump peristaltic pump - high flow rate

Flow rates: 500ml/min, 700ml/min, 800ml/min

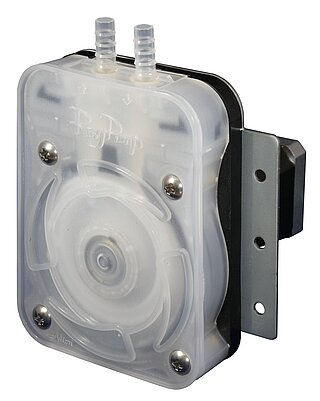

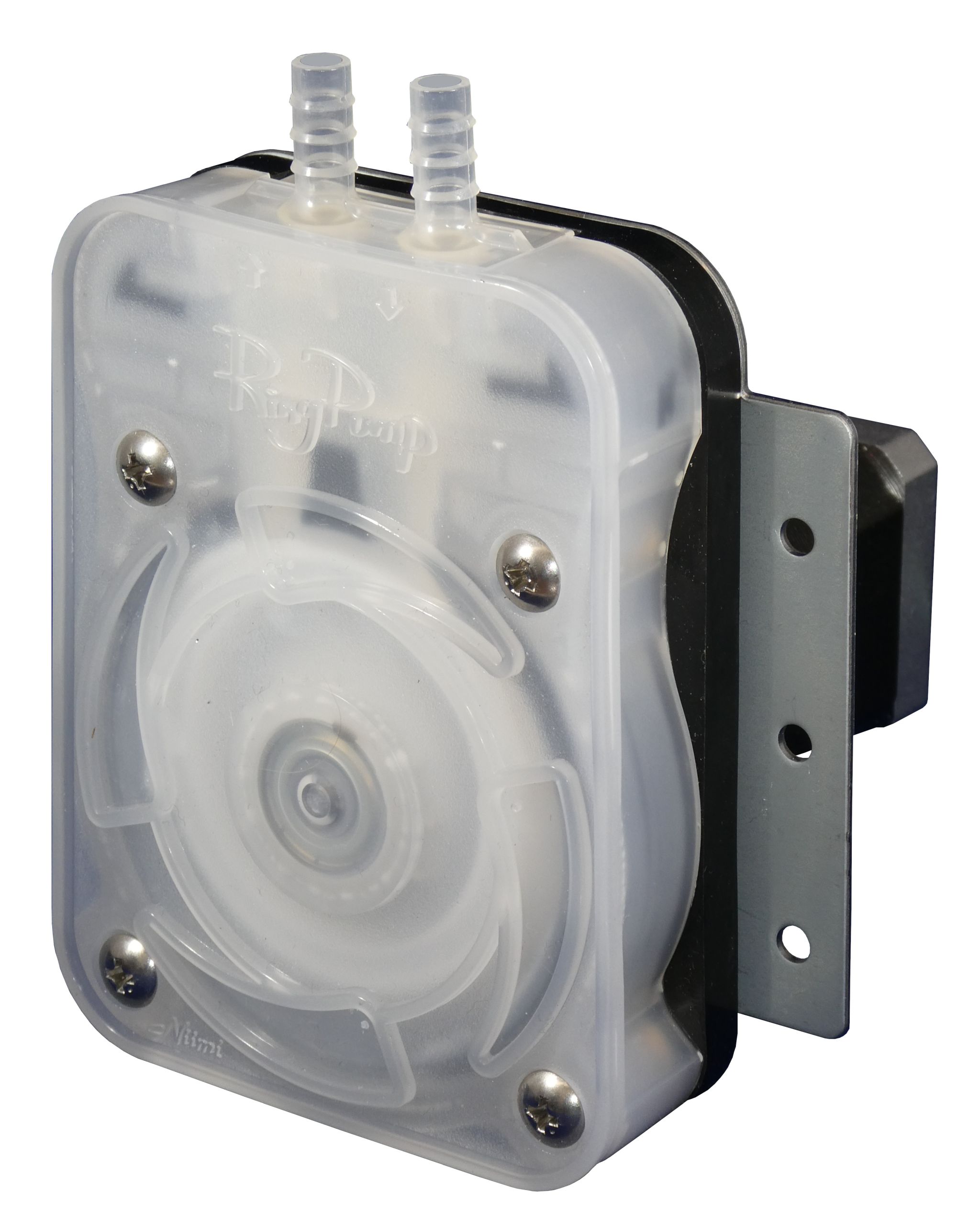

RP-S Serie - Ring Pump Peristaltic Pump
RP-S Serie - Dimensions
RP-S Serie - Mounting
RP-S Serie - Motor B

Description

Peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.

Significant extension of service intervals due to gentle pump system and durable hose. (see Ring-Pump System)

Large flow rate with fixed tube - also available in double-head version.

Specifications

Motor
DC gear motor
Flow rate
500ml | 700ml | 800ml
Channels
1
Operating pressure (max.)
500mbar
Tube materials
Norprene® | PharMed® | TM-15
Tube sizes (I.D. x O.D.)
6.35 x 9.52mm | 7.00 x 10.00mm
Operating voltage
24VDC
Dimensions
81.0 x 28.1 x 108.0 mm
Mounting direction
Any

* Double head version available. (see RP-2S)

Product overview

Model No.
Voltage (DC V)
Discharge rate (mL/min)
Tube
ID x OD (mm)
Motor
Rotation direction
RP-S06N-500Z-DC24V
24
500
Tygon A-60-F
6.35 x 9.52
Motor A
CW
RP-S06F-500Z-DC24V
24
500
PharMed BPT
6.35 x 9.52
Motor A
CW
RP-S06W-500Z-DC24V
24
500
Transmaster TM-15
6.35 x 9.52
Motor A
CW
RP-S06N-700Z-DC24V
24
700
Tygon A-60-F
6.35 x 9.52
Motor B
CW
RP-S06F-700Z-DC24V
24
700
PharMed BPT
6.35 x 9.52
Motor B
CW
RP-S07W-800Z-DC24V
24
800
Transmaster TM-15
7 x 10
Motor B
CW

Relation between suction / discharge height and discharge rate

RP-S Flow Characteristic
Flow Characteristic

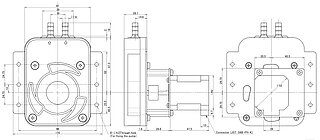

Dimensions

RP-S Dimensions
Dimensions
RP-S Mounting holes
Mounting holes
RP-S Motor B
Motor B
Ring Pump - peristaltic pump system

Ring Pump - peristaltic pump system

The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
