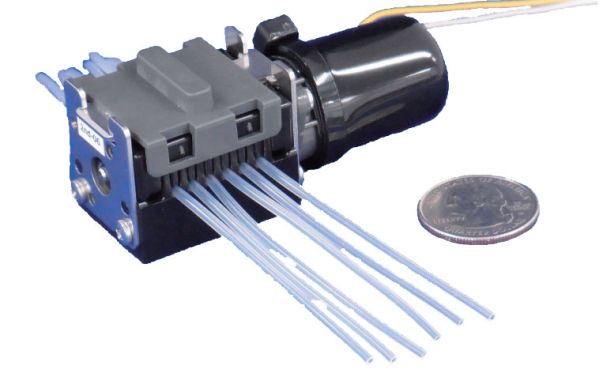

RP-RO - 6-channel micro peristaltic pump - up to 0,830 ml/min each channel
- approx. 830 µl/min each channel (DC-Motor)
- approx. 0,23 - 350 µl/min each channel (Stepper-Motor)
Description
Peristaltic pump for 6 channel simultaneous pumping of up to 830 µl/min for the version with DC motor and 0.23 to 350 µl/min for the version with stepper motor.
Easy tube replacement
Minimum dimensions of only 84.0 x 31.0 x 32.0 mm (L x W x D)
Specifications
Motor
|
DC motor
|
Bipolar Stepper Motor
|
Flow rate
|
approx. 0.8 ml/min per channel
|
approx. 0.23 - 350 μl/min per channel
|
Channels
|
6
|
6
|
Operating pressure (max.)
|
300mbar
|
300mbar
|
Tube materials
|
Silicone (other tube materials on request) |
Silicone (other tube materials on request) |
Tube sizes
|
(I.D. x O.D.) 1,0 x 2,0mm
|
1,0 x 2,0mm
|
Operating voltage
|
3VDC
|
10VDC
|
Dimensions
|
84.0 x 31.0 x 32.0 mm
|
84.0 x 31.0 x 32.0 mm
|
Mounting direction
|
Any
|
Any
|
