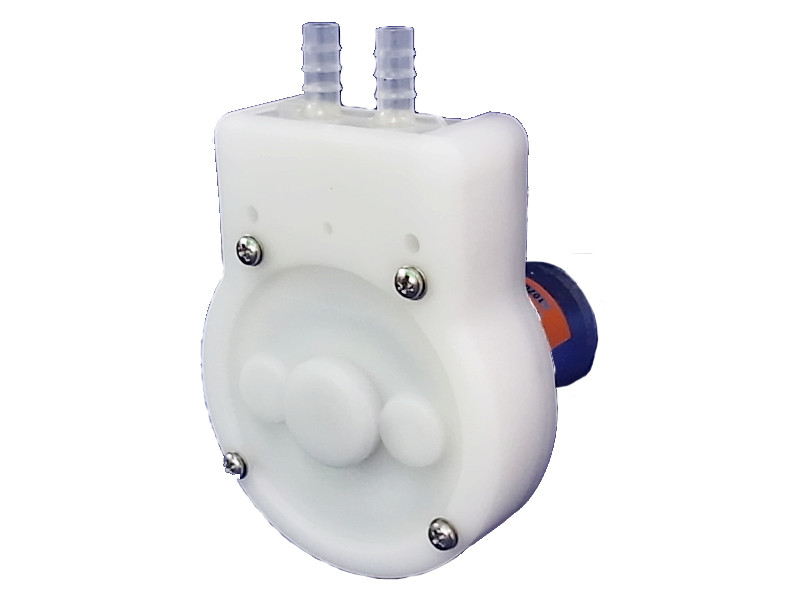

RP-KII Series - Ring Pump peristaltic pump
Flow rates up to 250ml/min, 24VDC motor
Description
Peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.
Significant extension of service intervals due to gentle pump system and durable hose. (see Ring-Pump System)
Compact, economical design with fixed tube.
Specifications
Motor
|
DC gear motor
|
Flow rate
|
50 ml | 100 ml | 150 ml | 200 ml | 250 ml
|
Channels
|
1
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
Silicone | Norprene® | TM-15
|
Tube sizes (I.D. x O.D.)
|
4.8 x 8.0mm | 6.5 x 9.9mm | 6.35 x 9.52mm
|
Operating voltage
|
24VDC
|
Dimensions
|
79.0 x 29.6 x 100.0 mm
|
Mounting direction
|
Any
|
Product overview
Model No.
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm)
|
Motor
|
Dimension of L (mm)
|

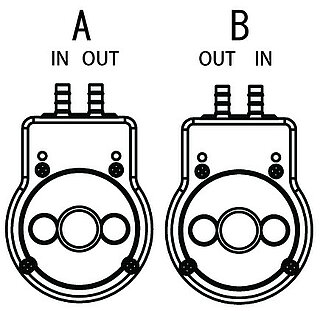

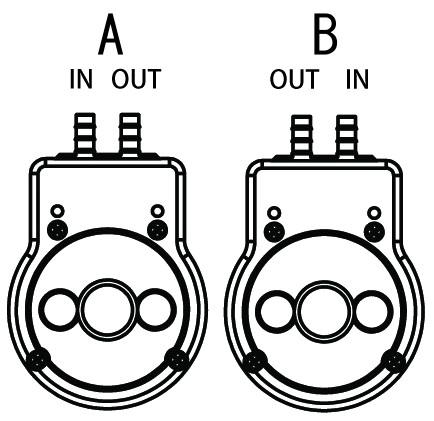

Discharge direction
|
|---|---|---|---|---|---|---|---|
RP-KII05S-50Z-DC24V
|
24
|
50
|
Silicone
|
4.8 x 8.0
|
Motor A
|
28.1
|
B
|
RP-KII05N-50Z-DC24V
|
24
|
50
|
Tygon A-60-F
|
4.76 x 7.94
|
Motor A
|
28.1
|
B
|
RP-KII05W-50Z-DC24V
|
24
|
50
|
Transmaster TM-15
|
4.8 x 7.9
|
Motor A
|
28.1
|
B
|
RP-KII06S-100Z-DC24V
|
24
|
100
|
Silicone
|
6.5 x 9.9
|
Motor B
|
28.1
|
B
|
RP-KII06N-100Z-DC24V
|
24
|
100
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor B
|
28.1
|
B
|
RP-KII06W-100Z-DC24V
|
24
|
100
|
Transmaster TM-15
|
6.35 x 9.52
|
Motor B
|
28.1
|
B
|
RP-KII06N-150Z-DC24V
|
24
|
150
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor A
|
25.6
|
A
|
RP-KII06W-150Z-DC24V
|
24
|
150
|
Transmaster TM-15
|
6.35 x 9.52
|
Motor A
|
25.6
|
A
|
RP-KII06N-200Z-DC24V
|
24
|
200
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor A
|
25.6
|
A
|
RP-KII06W-200Z-DC24V
|
24
|
200
|
Transmaster TM-15
|
6.35 x 9.52
|
Motor A
|
25.6
|
A
|
RP-KII06N-250Z-DC24V
|
24
|
250
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor A
|
25.6
|
A
|
RP-KII06W-250Z-DC24V
|
24
|
250
|
Transmaster TM-15
|
6.35 x 9.52
|
Motor A
|
25.6
|
A
|

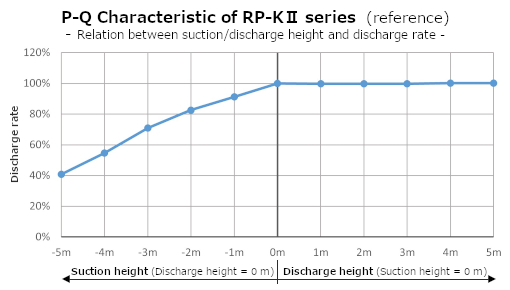

Relation between suction / discharge height and discharge rate

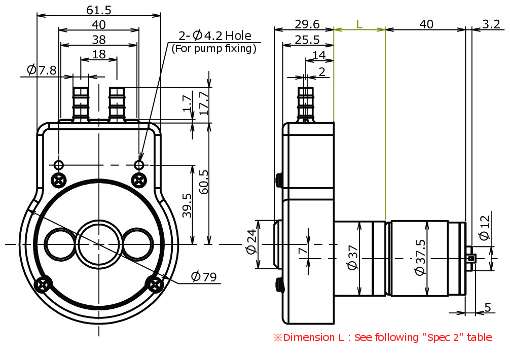

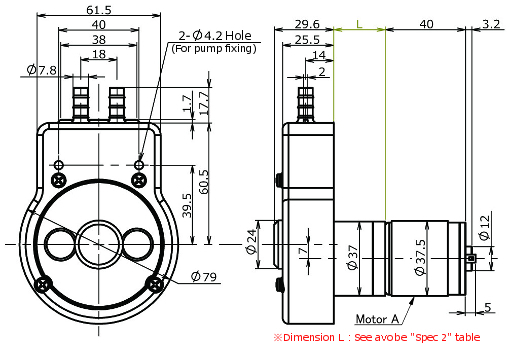

Dimensions
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
Downloads
ringpump_en_rp-k2.pdf 356 KB
