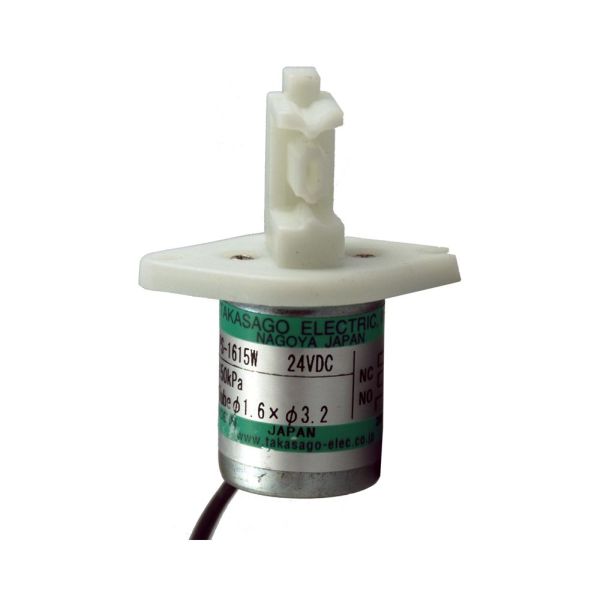

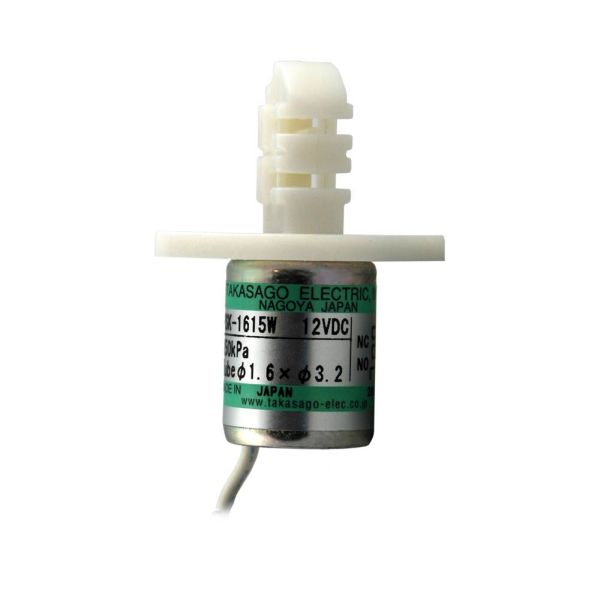

PS / PSK Series - Pinch Valve
Tube size: 0.8-2.0 x 2.4-4.0mm (ID x OD)
Description
2/2-way and 3/2-way pinch valve.
This valve is also available in bistable version (PL Series). This reduces both power consumption and heat generation to a minimum.
Specifications
Type
|
2/2-way normally closed 2/2-way normally open 3/2-way |
Tube inner diameter (ID)
|
0.8 - 2.0 mm
|
Hose outer diameter (OD)
|
2.4 - 4.0 mm
|
Working pressure
|
0 - 1500 mbar
|
Tube material
|
Silicone | Pharmed® Please ask for further tube sizes and types, we will be pleased to adapt our valves to your tube! |
Ambient temperature range
|
0 - 40°C
|
Power consumption
|
3.0 W
|
Operating duration
|
100% ED
|
Mounting direction
|
Any
|
Outer Dimensions
|
26.0 x 39.2 x 49.5 mm
|
The pinch valves can be customized to your tubes to achieve optimum closing force.
Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, ...)
Downloads
PS(K) Series datasheet 295 KB
